Tungsram-Western 3 csöves

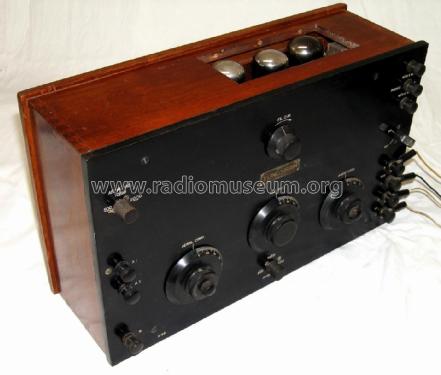

Tungsram-Western 3 csöves; Tungsram; Budapest (ID = 2372583) Radio Tungsram-Western 3 csöves; Tungsram; Budapest (ID = 2372585) Radio
Tungsram-Western 3 csöves; Tungsram; Budapest (ID = 2372584) Radio Tungsram-Western 3 csöves; Tungsram; Budapest (ID = 2372586) Radio
Tungsram-Western 3 csöves; Tungsram; Budapest (ID = 528436) Radio Tungsram-Western 3 csöves; Tungsram; Budapest (ID = 1931377) Radio
Tungsram-Western 3 csöves; Tungsram; Budapest (ID = 2231666) Radio
Use red slider bar for more.

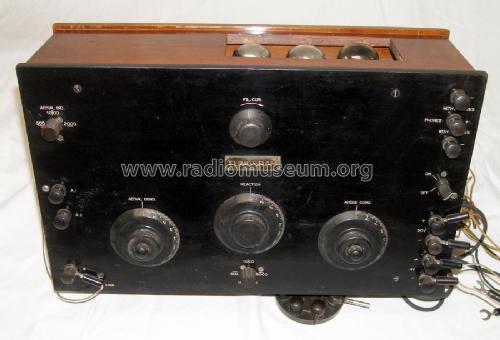

Tungsram-Western 3 csöves; Tungsram; Budapest (ID = 2372583) Radio
Tungsram; Budapest: Tungsram-Western 3 csöves [Radio] ID = 2372583 1400x952
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tungsram-Western 3 csöves, Tungsram; Budapest (see also British T.):
This radio is part of the Velimir Kraker collection at the Sisak Municipal Museum.

Country:  Hungary
Manufacturer / Brand:  Tungsram; Budapest (see also British T.)
Year: 1926–1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3:
Main principle TRF without regeneration; Neutrodyne
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Tungsram-Western 3 csöves - Tungsram; Budapest see also
Material Various materials
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

Jack: Speaker (3 tubes), Haedphones (made 2 tubes).

200-2000m

Price in first year of sale 320.00 Pengö
Source of data - - Manufacturers Literature
Mentioned in -- Original prospect or advert (Belgráder 1928. Nagy katalógusa - Big catalog)
Literature/Schematics (1) -- Original prospect or advert (Rádió Amatőr 1926. 1/1.)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Tungsram; Budapest (see also British T.)
Here you find 39 models, 38 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
