• Year
  • 1927–1929
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 315908

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 4 & ? Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org

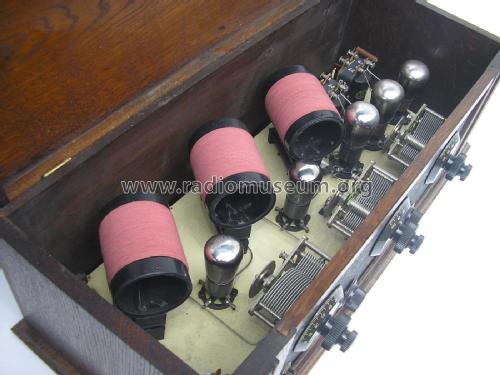

  • Model: T.R.5 - Turun Radio Oy; Turku
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 672 x 305 x 220 mm / 26.5 x 12 x 8.7 inch
  • Author
  • Model page created by Timo Rantasaari. See "Data change" for further contributors.
