Transistogram 6312

Transistogram 6312; Ultra Electric Ltd.; (ID = 777839) Radio

Transistogram 6312; Ultra Electric Ltd.; (ID = 777840) Radio

Transistogram 6312; Ultra Electric Ltd.; (ID = 777841) Radio

Transistogram 6312; Ultra Electric Ltd.; (ID = 777842) Radio
Transistogram 6312; Ultra Electric Ltd.; (ID = 2328316) Radio Transistogram 6312; Ultra Electric Ltd.; (ID = 2328317) Radio
Transistogram 6312; Ultra Electric Ltd.; (ID = 2328318) Radio Transistogram 6312; Ultra Electric Ltd.; (ID = 2328322) Radio
Transistogram 6312; Ultra Electric Ltd.; (ID = 2328323) Radio Transistogram 6312; Ultra Electric Ltd.; (ID = 2328324) Radio
Transistogram 6312; Ultra Electric Ltd.; (ID = 2328325) Radio
Use red slider bar for more.
Transistogram 6312; Ultra Electric Ltd.; (ID = 2328316) Radio
Ultra Electric Ltd.;: Transistogram 6312 [Radio] ID = 2328316 900x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistogram 6312, Ultra Electric Ltd.; London:
Ebay UK item 132870893913 seller onlyavampirecanloveyouforever

Country:  Great Britain (UK)
Manufacturer / Brand:  Ultra Electric Ltd.; London
alternative name

Ultra Radio and Television
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 20: SE1002 SE1001 AF115 AF116 AF116 AF116 AC156 AC156 AC156 AC156 AC165 AC165 AC166 AC166 AC168 AC168 AC167 AC167 AC167 AC167
Main principle Superheterodyne (common); ZF/IF 475/10700 kHz; 5 AF stage(s)
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Transistogram 6312 - Ultra Electric Ltd.; London
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 48 x 30.5 x 16 inch / 1219 x 775 x 406 mm

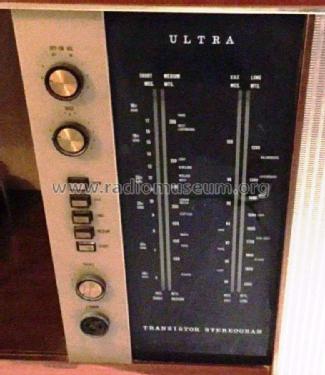

Notes Stereo radiogram (mono radio) fitted with Garrard type AT5 record changer & Ronette 105S cartridge. SW band 5.8-18.2 MHz. Speakers 8 x 5 inches.
Source of data -- Schematic

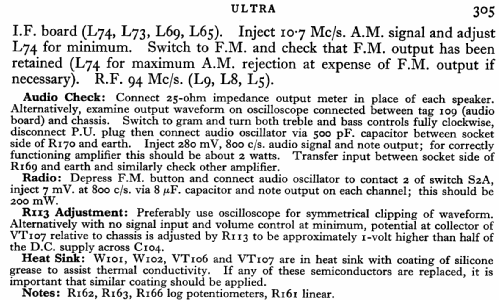

Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
