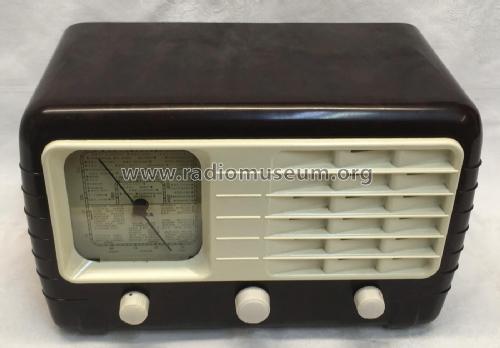

ET4011; Ultra Electric Ltd.; (ID = 2501705) Radio
Ultra Electric Ltd.;: ET4011 [Radio] ID = 2501705 1400x975
Select picture or schematic to display from thumbnails on the right and click for download.
For model ET4011, Ultra Electric Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Ultra Electric Ltd.; London
alternative name

Ultra Radio and Television
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner

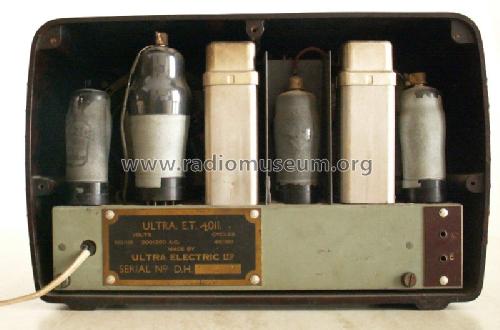

Valves / Tubes 4: TH41 VP41 Pen45DD UU6
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-110; 200-220; 220-240; 240-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
Power out
from Radiomuseum.org Model: ET4011 - Ultra Electric Ltd.; London

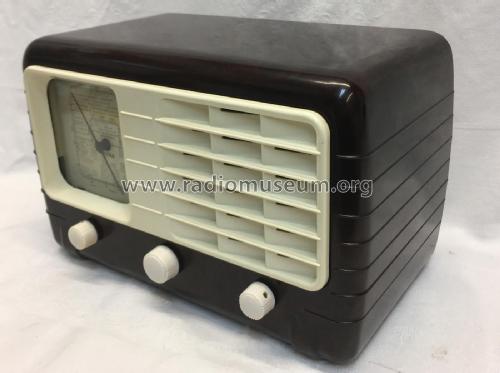

Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 305 x 195 x 164 mm / 12 x 7.7 x 6.5 inch
Notes

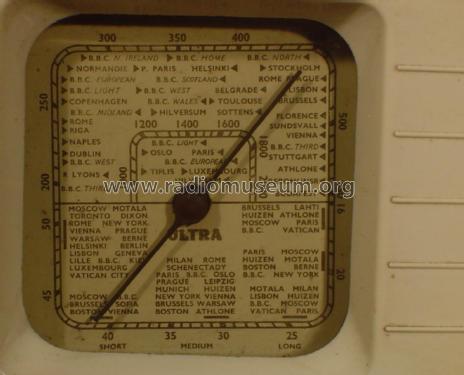

Dial lamp: 8042 (4V/0,5A).

Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Ultra Electric Ltd.; London
Here you find 218 models, 128 with images and 149 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
