ET4061

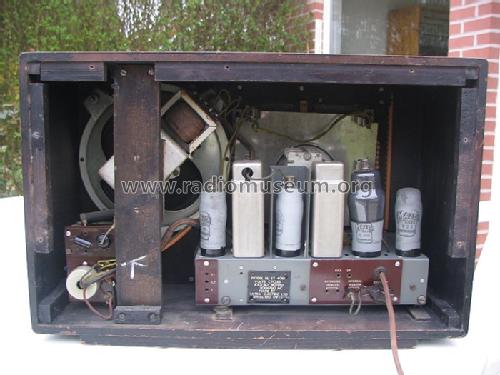

ET4061; Ultra Electric Ltd.; (ID = 307942) Radio ET4061; Ultra Electric Ltd.; (ID = 307943) Radio
Use red slider bar for more.

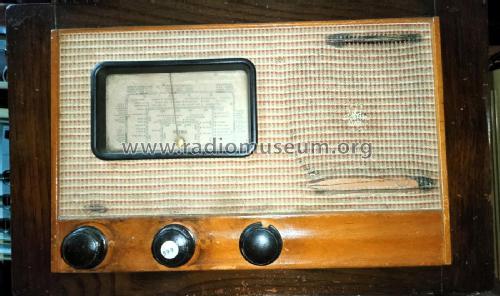

ET4061; Ultra Electric Ltd.; (ID = 307942) Radio
Ultra Electric Ltd.;: ET4061 [Radio] ID = 307942 700x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model ET4061, Ultra Electric Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Ultra Electric Ltd.; London
alternative name

Ultra Radio and Television
Year: 1942 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UU6 TH41 VP41 Pen45DD
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100; 110; 200; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: ET4061 - Ultra Electric Ltd.; London
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 490 x 310 x 190 mm / 19.3 x 12.2 x 7.5 inch
Source of data - - Data from my own collection

Model page created by Patrick Mergan † Dec. 21, 2009. See "Data change" for further contributors.



All listed radios etc. from Ultra Electric Ltd.; London
Here you find 218 models, 129 with images and 149 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
