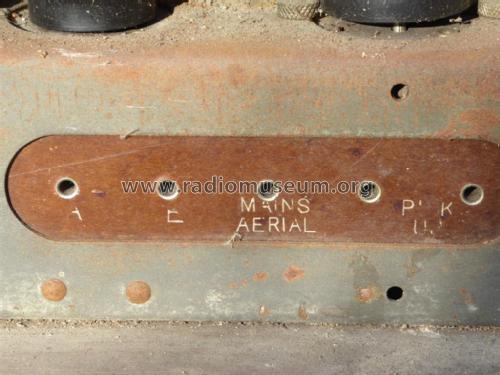

Lynx Console ; Ultra Electric Ltd.; (ID = 2360274) Radio
Use red slider bar for more.

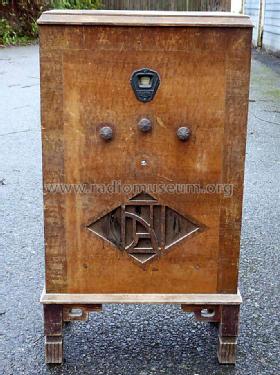

Lynx Console ; Ultra Electric Ltd.; (ID = 2360242) Radio
Ultra Electric Ltd.;: Lynx Console [Radio] ID = 2360242 687x917
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lynx Console, Ultra Electric Ltd.; London:
Image kindly sent in by Patrick Bonham, Rye, UK

Country:  Great Britain (UK)
Manufacturer / Brand:  Ultra Electric Ltd.; London
alternative name

Ultra Radio and Television
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AC/SGVM AC/SG AC/Pen UU60/250
Main principle TRF with regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 230-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Lynx Console - Ultra Electric Ltd.; London
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 19 x 33 x 10.5 inch / 483 x 838 x 267 mm
Notes

A consolette MW/LW radio with the same chassis as that in the Ultra Lynx table radio.

Net weight (2.2 lb = 1 kg) 39 lb (39 lb 0 oz) / 17.706 kg
Literature/Schematics (1) Broadcaster, Service Man's Manual (January 1934)
