• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ultra Electric Ltd.; London

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140461

• • alternative name: Ultra Radio and Television

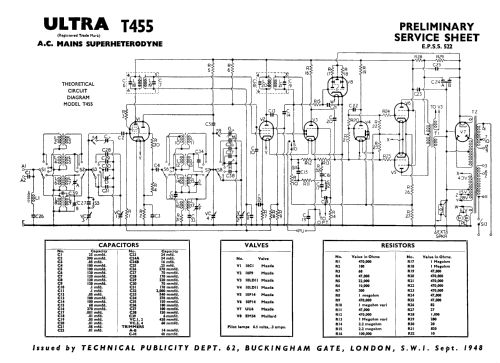

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 10C1 10F9 10LD11 10P14 EM34 10P14 10LD11 UU6

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: T455 - Ultra Electric Ltd.; London

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 15 x 21 x 9.75 inch / 381 x 533 x 248 mm

• Notes
• 5 x SW covering 11 to 90 metres.

• Net weight (2.2 lb = 1 kg)
• 32 lb 0 oz (32 lb) / 14.528 kg

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Júlio Branco. See "Data change" for further contributors.
