Astrosound TV12

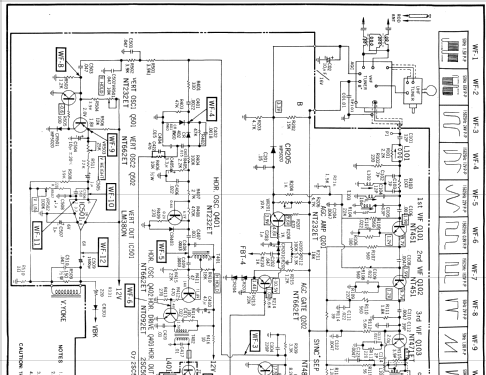

Astrosound TV12; TEC Dieter Beer; (ID = 792288) Television

Astrosound TV12; TEC Dieter Beer; (ID = 792289) Television

Astrosound TV12; TEC Dieter Beer; (ID = 792291) Television

Astrosound TV12; TEC Dieter Beer; (ID = 792293) Television

Astrosound TV12; TEC Dieter Beer; (ID = 792294) Television

Astrosound TV12; TEC Dieter Beer; (ID = 792296) Television

Astrosound TV12; TEC Dieter Beer; (ID = 792299) Television

Astrosound TV12; TEC Dieter Beer; (ID = 792297) Television
Astrosound TV12; TEC Dieter Beer; (ID = 792280) Television Astrosound TV12; TEC Dieter Beer; (ID = 792140) Television
Use red slider bar for more.
Astrosound TV12; TEC Dieter Beer; (ID = 792280) Television
TEC Dieter Beer;: Astrosound TV12 [Television] ID = 792280 900x797
Select picture or schematic to display from thumbnails on the right and click for download.
For model Astrosound TV12, TEC Dieter Beer; Wiesbaden:
Q: Katalog

Country:  Germany
Manufacturer / Brand:  TEC Dieter Beer; Wiesbaden
Year: 1975 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 12VBHP4 or 12VBQP4
Semiconductors (the count is only for transistors) 22: CA3065 LM380
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Batteries (any type) / 220 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Astrosound TV12 - TEC Dieter Beer; Wiesbaden
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 430 x 300 x 270 mm / 16.9 x 11.8 x 10.6 inch
Notes Astrosound TV12;
27/31 cm 110° s/w TV Empfänger mit CCIR B/G VHF Trommel & UHF Abstimmrad Tuner, 2 IC´s, 35/25 W Leistungsaufnahme, lt. Unterlagen verm. Fernost Fabrikat für den deutschsprachigen Markt.
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data - - Manufacturers Literature

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from TEC Dieter Beer; Wiesbaden
Here you find 140 models, 134 with images and 36 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
