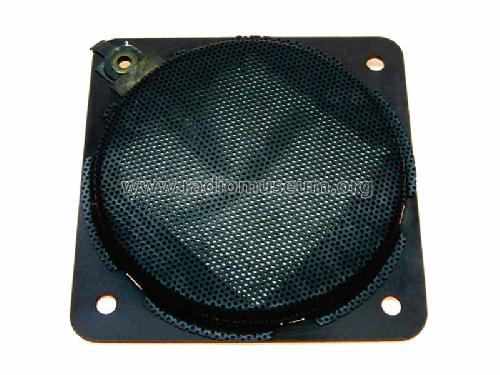

Lautsprecherchassis LSH 75

Lorenz; Berlin, Zuffenhausen u.a.

  • Year
  • 1956/1957
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 197621
    • Brand: SEL

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Electrostatic Loudspeaker (high bias DC voltage)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Lautsprecherchassis LSH 75 - Lorenz; Berlin, Zuffenhausen u
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 75 x 7 x 75 mm / 3 x 0.3 x 3 inch
  • Notes
  • Anwendungsgebiet: Hochtonlautsprecher. Art: elektrostatisch. Korb: Pertinax geschlossen. Korbform: kreisrund mit Befestigungsohren und Befestigungslöchern. Befestigungslochkreis: 60 mm (Abstand Loch - Loch). Schallwandlochdurchmesser: 70 mm.
  • Net weight (2.2 lb = 1 kg)
  • 0.026 kg / 0 lb 0.9 oz (0.057 lb)
  • Price in first year of sale
  • 4.50 DM
  • Mentioned in
  • Prospekt "Lorenz Celophon Lautsprecher 1956"
  • Author
  • Model page created by Jürgen Tiedmann. See "Data change" for further contributors.
