Sound 4004 Stereo-Radio-Recorder

Sound 4004 Stereo-Radio-Recorder ; TEC Dieter Beer; (ID = 2557436) Radio Sound 4004 Stereo-Radio-Recorder ; TEC Dieter Beer; (ID = 2557438) Radio
Sound 4004 Stereo-Radio-Recorder ; TEC Dieter Beer; (ID = 2557444) Radio Sound 4004 Stereo-Radio-Recorder ; TEC Dieter Beer; (ID = 2557448) Radio
Sound 4004 Stereo-Radio-Recorder ; TEC Dieter Beer; (ID = 2557442) Radio Sound 4004 Stereo-Radio-Recorder ; TEC Dieter Beer; (ID = 2557439) Radio
Sound 4004 Stereo-Radio-Recorder ; TEC Dieter Beer; (ID = 2557440) Radio Sound 4004 Stereo-Radio-Recorder ; TEC Dieter Beer; (ID = 1005907) Radio
Sound 4004 Stereo-Radio-Recorder ; TEC Dieter Beer; (ID = 1005908) Radio Sound 4004 Stereo-Radio-Recorder ; TEC Dieter Beer; (ID = 1005909) Radio
Use red slider bar for more.
Sound 4004 Stereo-Radio-Recorder ; TEC Dieter Beer; (ID = 2557436) Radio
TEC Dieter Beer;: Sound 4004 Stereo-Radio-Recorder [Radio] ID = 2557436 1400x829
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sound 4004 Stereo-Radio-Recorder, TEC Dieter Beer; Wiesbaden

Country:  Germany
Manufacturer / Brand:  TEC Dieter Beer; Wiesbaden
Year: 1979 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / D: 6 x 1,5 Volt

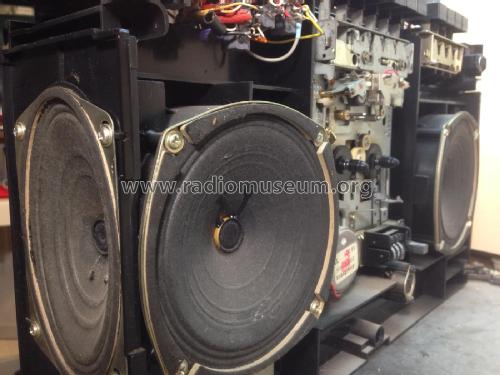

Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Sound 4004 Stereo-Radio-Recorder - TEC Dieter Beer; Wiesbaden
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 420 x 280 x 130 mm / 16.5 x 11 x 5.1 inch
Notes

Sound 4004 Stereo-Radio-Recorder;
FM bis 108 MHz,
KW: 6 - 18 MHz,

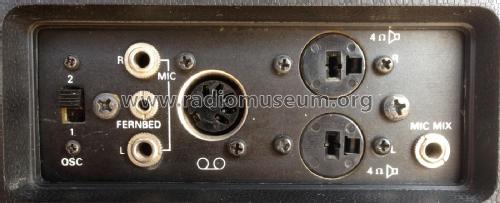

Mic. Mixer, 2 x Mic & Rem in, DIN, ext. LS DIN, ext. Antenne.

Durch Datumsstempel am Motor ist ein Fertigungsjahr von 1979 belegt.

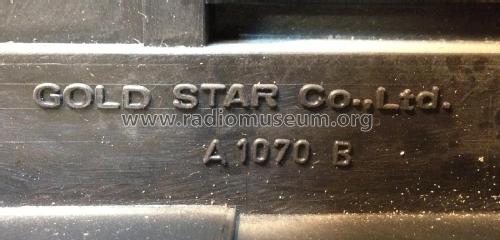

Modell ist offenbar baugleich mit Goldstar TSR 540.

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)

Model page created by a member from A. See "Data change" for further contributors.
