Spulensatz MLW 1005

Spulensatz MLW 1005; Tiede, Otto; Berlin- (ID = 1331882) mod-past25
Spulensatz MLW 1005; Tiede, Otto; Berlin- (ID = 1326987) mod-past25 Spulensatz MLW 1005; Tiede, Otto; Berlin- (ID = 1326984) mod-past25

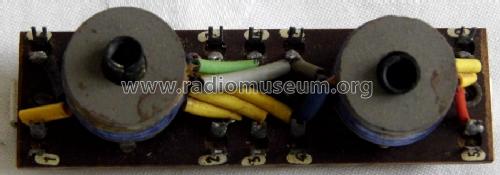

Spulensatz MLW 1005; Tiede, Otto; Berlin- (ID = 1326985) mod-past25 Spulensatz MLW 1005; Tiede, Otto; Berlin- (ID = 1326986) mod-past25
Use red slider bar for more.

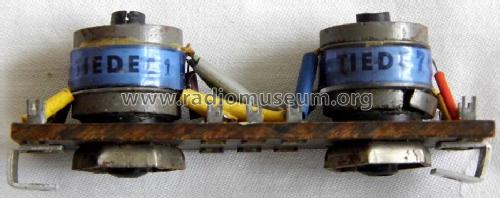

Spulensatz MLW 1005; Tiede, Otto; Berlin- (ID = 1326987) mod-past25
Tiede, Otto; Berlin-: Spulensatz MLW 1005 [mod-past25] ID = 1326987 933x371
Select picture or schematic to display from thumbnails on the right and click for download.
For model Spulensatz MLW 1005, Tiede, Otto; Berlin-Reinickendorf

Country:  Germany
Manufacturer / Brand:  Tiede, Otto; Berlin-Reinickendorf
Year: 1944 ?? Category: Radio module post 1925 (not a part, not a key)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Spulensatz MLW 1005 - Tiede, Otto; Berlin-
Material Various materials
Shape Chassis only or for «building in»
Dimensions (WHD) 90 x 20 x 25 mm / 3.5 x 0.8 x 1 inch
Notes

Tiede Spulensatz MLW 1005 für Einkreisempfänger, Mittel- u. Langwelle.

Net weight (2.2 lb = 1 kg) 0.049 kg / 0 lb 1.7 oz (0.108 lb)

Model page created by Holger Drechsel. See "Data change" for further contributors.
