Audion VRE I alt

Audion VRE I; Unda-Apparatebau, (ID = 206800) Radio Audion VRE I; Unda-Apparatebau, (ID = 206925) Radio
Use red slider bar for more.

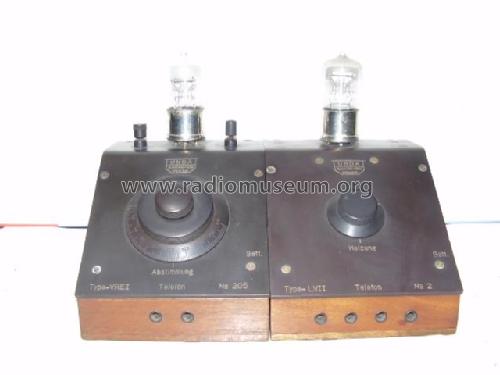

Audion VRE I; Unda-Apparatebau, (ID = 206800) Radio
Unda-Apparatebau,: Audion VRE I [Radio] ID = 206800 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Audion VRE I alt, Unda-Apparatebau, Convida AG; München

Country:  Germany
Manufacturer / Brand:  Unda-Apparatebau, Convida AG; München
alternative name

Condiva AG; München
Year: 1924 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1:
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 1 AM circuit(s)
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Audion VRE I [alt] - Unda-Apparatebau, Convida AG;
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, slant panel.
Notes vorne Buchse für "Telefon"
Price in first year of sale 65.00 RM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Historische Radios Band IV (127B)
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.


All listed radios etc. from Unda-Apparatebau, Convida AG; München
Here you find 12 models, 9 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
