Delco 608

Delco 608; United Motors (ID = 311395) Radio

Delco 608; United Motors (ID = 311396) Radio

Delco 608; United Motors (ID = 311397) Radio

Delco 608; United Motors (ID = 311398) Radio

Delco 608; United Motors (ID = 311399) Radio
Delco 608; United Motors (ID = 1065949) Radio Delco 608; United Motors (ID = 311394) Radio
Delco 608; United Motors (ID = 1065950) Radio Delco 608; United Motors (ID = 1065951) Radio
Use red slider bar for more.
Delco 608; United Motors (ID = 1065949) Radio
United Motors: Delco 608 [Radio] ID = 1065949 696x462
Select picture or schematic to display from thumbnails on the right and click for download.
For model Delco 608, United Motors Service (Delco):

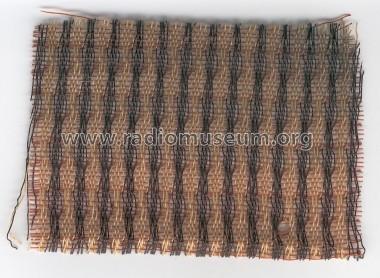

Grill cloth, knobs and top/bottom front panels are not original, but are fairly close.

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 6SK7 6SH7 6SQ7 6K6GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110 / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Delco 608 - United Motors Service Delco
Material Wooden case
Shape Tablemodel, low profile (big size).
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Mentioned in Collector's Guide to Antique Radios (6th edition)


All listed radios etc. from United Motors Service (Delco)
Here you find 577 models, 312 with images and 548 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
