7256609 Cadillac; United Motors (ID = 2544133) Car Radio
United Motors: 7256609 Cadillac [Car Radio] ID = 2544133 720x960
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7256609 Cadillac, United Motors Service (Delco):

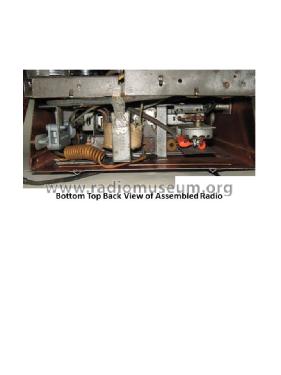

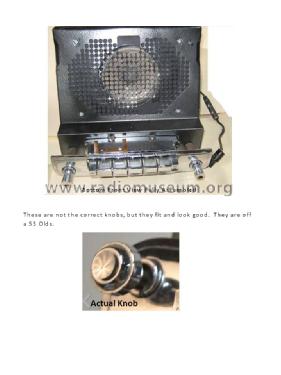

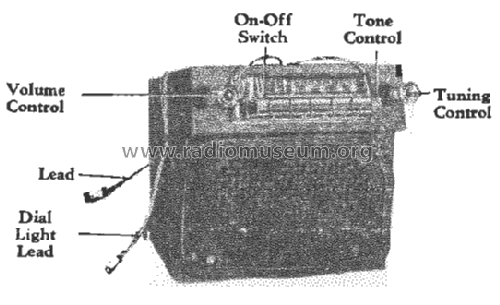

Front View

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1948 Category: Car Radio, perhaps also + sound player/recorder

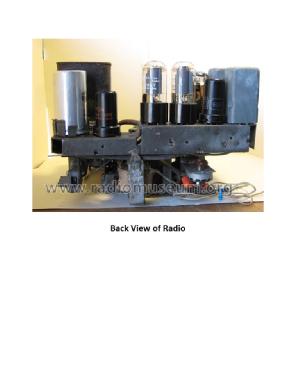

Valves / Tubes 7: 6SK7 6SA7 6SK7 6SR7 6V6 6V6 0Z4

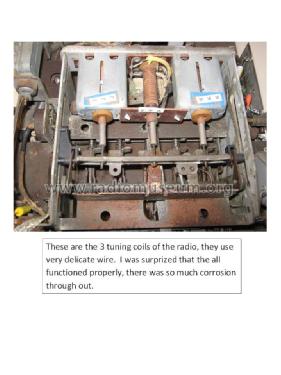

Main principle Superhet with RF-stage; ZF/IF 260 kHz
Wave bands Broadcast only (MW).
Details

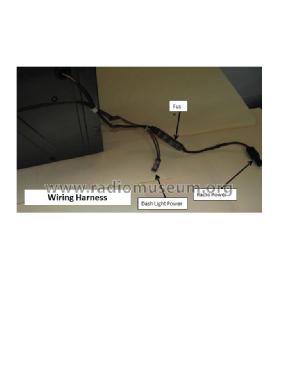

Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / =6 Volt

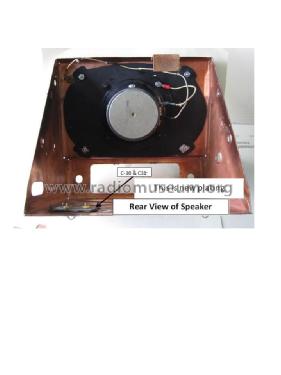

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 7256609 Cadillac - United Motors Service Delco
Material Metal case
Shape Chassis only or for «building in»

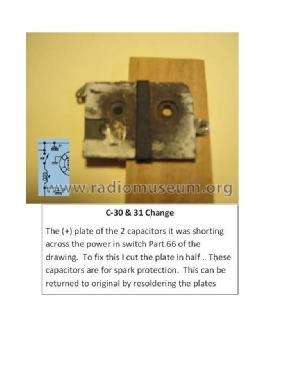

Notes vibrator for +B;
External source of data Ernst Erb

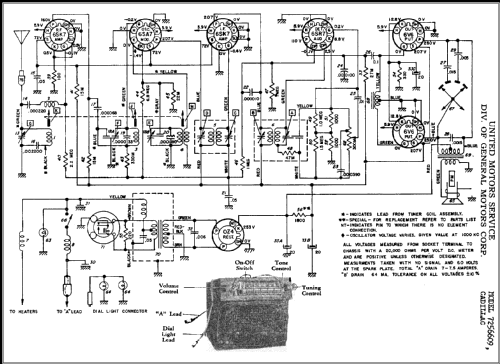

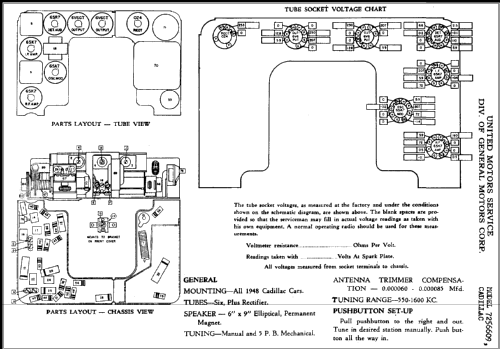

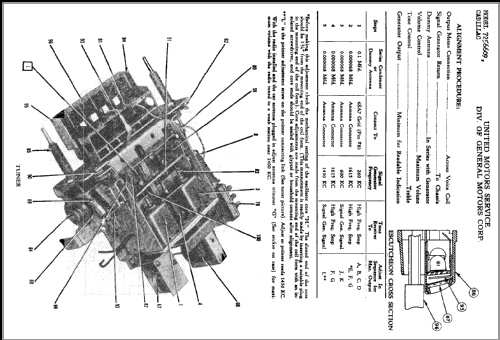

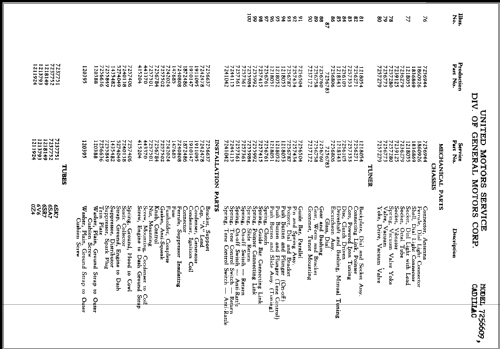

Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
