7264165 Cadillac ; United Motors (ID = 236862) Car Radio

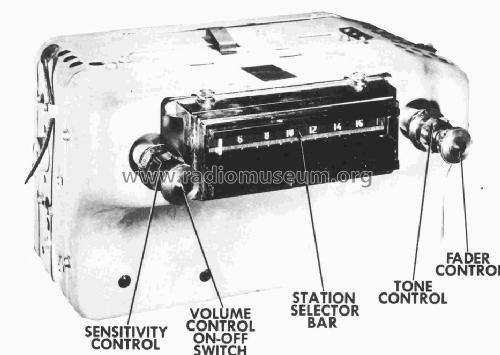

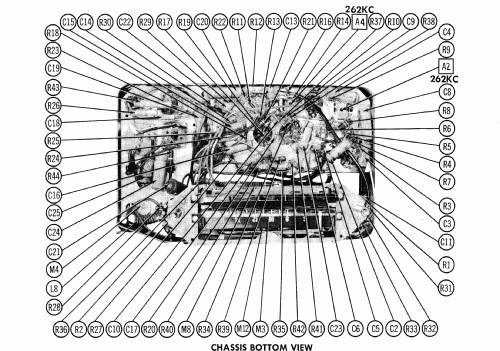

United Motors: 7264165 Cadillac [Car Radio] ID = 236862 933x664
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7264165 Cadillac, United Motors Service (Delco)

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1954/1955 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 9: 12BA6 12BE6 12BA6 12BF6 12AU7 12AV6 12V6GT 12V6GT 0Z4
Main principle Superhet with RF-stage; ZF/IF 262 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 7264165 Cadillac - United Motors Service Delco
Material Metal case
Shape Chassis only or for «building in»
Notes The models 7264165 and 7264185 from Cadillac Division (Cadillac Motor Car) of General Motors Corp., Detroit are storage battery operated custom-built automotive superheterodyne receivers for 1954 Cadillac Automobiles. They have a vibrator (Interrupter) and the same schematic. Push-Pull Output. See also unter brand Cadillac.
Circuit diagram reference Beitman Radio Diagrams Vol. 14, 1954

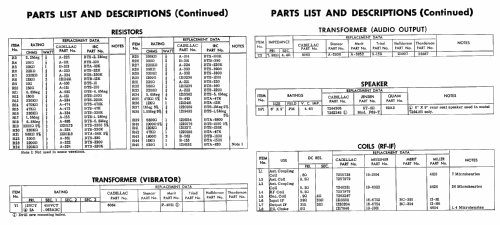

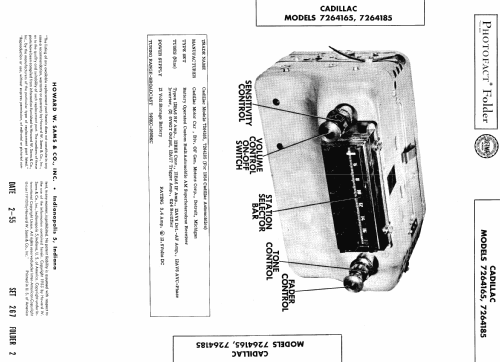

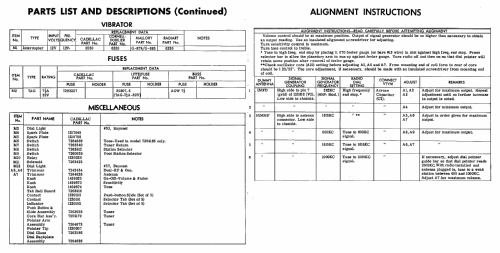

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (for Div. Of General Motors under Cadillac, date 2-55, set 267, folder 2)

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
