• Country
• United States of America (USA)

• Manufacturer / Brand
• United Motors Service (Delco)

• Year
• 1956 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 82146

• • alternative name: Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
  • Brand: Chieftain || Delco

Click on the schematic thumbnail to request the schematic as a free document.

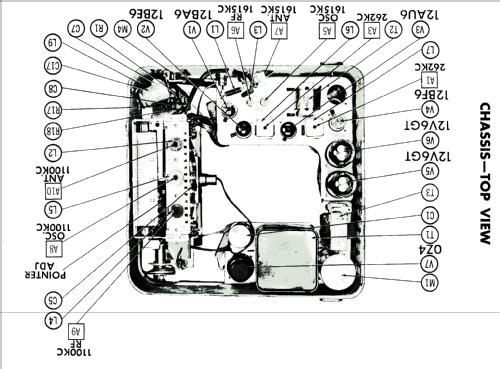

• Number of Tubes
• 7

• Valves / Tubes
• 12BA6 12BE6 12AU6 12BF6 12V6GT 12V6GT 0Z4

• Main principle
• Superhet with RF-stage; ZF/IF 262 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Metal case

• from Radiomuseum.org
• Model: 981707 Buick - United Motors Service Delco

• Shape
• Chassis only or for «building in»

• Notes

• Vibrator for +B; Push-pull output stage. For 1956 Buick Automobiles.

  Speaker size 6x9 inch.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 16, 1956

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 347 Folder 3 Date 2-57)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
