• Country
• United States of America (USA)

• Manufacturer / Brand
• United Motors Service (Delco)

• Year
• 1947

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 74828

• • alternative name: Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
  • Brand: Chieftain || Delco

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7A7 7B8 7A7 7B6 7C5 0Z4

• Main principle
• Superhet with RF-stage; ZF/IF 262 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org

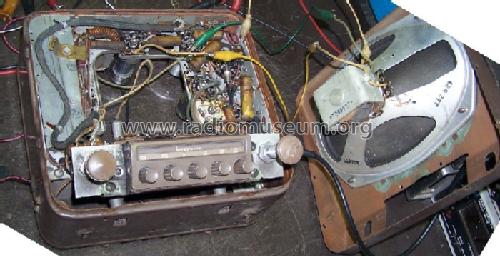

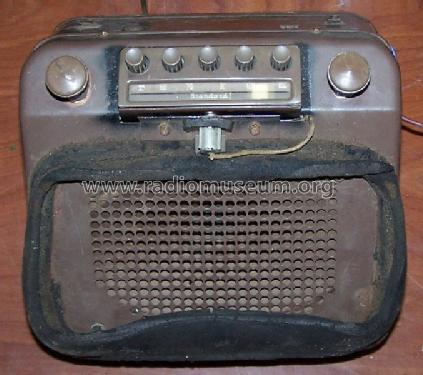

• Model: 982376 Oldsmobile - United Motors Service Delco

• Shape
• Chassis only or for «building in»

• Notes
• Vibrator 44. for +B;

• Source of data
• Beitman Radio Diagrams, Vol. 07, 1947

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
