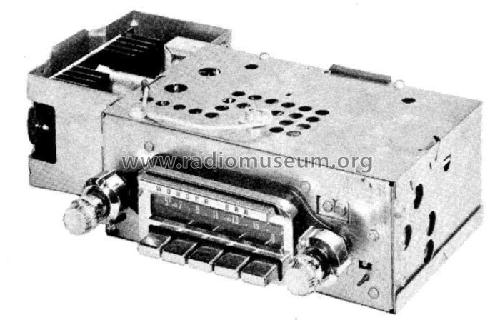

988977 Pontiac; United Motors (ID = 613930) Car Radio
United Motors: 988977 Pontiac [Car Radio] ID = 613930 700x455
Select picture or schematic to display from thumbnails on the right and click for download.
For model 988977 Pontiac, United Motors Service (Delco):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1959 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: 12DZ6 12AD6 12EK6 12DV8 12AL8
Semiconductors (the count is only for transistors) 1: DS-501
Main principle Superheterodyne (common); ZF/IF 262 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 988977 Pontiac - United Motors Service Delco
Material Metal case
Shape Chassis only or for «building in»
Notes The United Motors Service (Delco) Model 988977 is a Battery operated 5 Tube AM Automobile Receiver with Transistorized Output for 1959 Pontiac Automobiles.

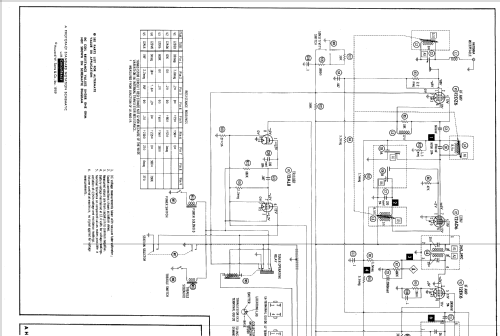

Circuit diagram reference Beitman Radio Diagrams Vol. 19, 1959

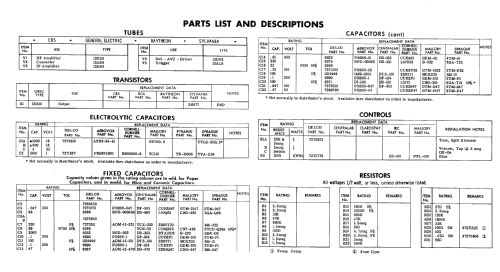

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 11-59, Set 462, Folder 15)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
