Cadillac 7266505

Cadillac 7266505; United Motors (ID = 235471) Car Radio

Cadillac 7266505; United Motors (ID = 235472) Car Radio

Cadillac 7266505; United Motors (ID = 235473) Car Radio

Cadillac 7266505; United Motors (ID = 235474) Car Radio

Cadillac 7266505; United Motors (ID = 235475) Car Radio

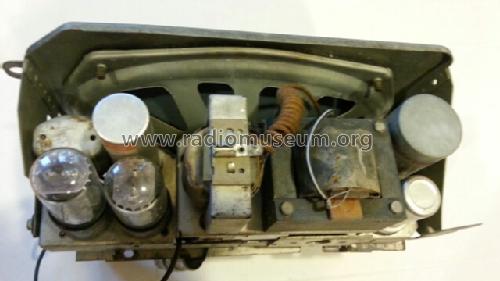

Cadillac 7266505; United Motors (ID = 235476) Car Radio Cadillac 7266505; United Motors (ID = 1523141) Car Radio
Cadillac 7266505; United Motors (ID = 1523142) Car Radio Cadillac 7266505; United Motors (ID = 1523143) Car Radio
Cadillac 7266505; United Motors (ID = 1523144) Car Radio
Use red slider bar for more.
Cadillac 7266505; United Motors (ID = 235476) Car Radio
United Motors: Cadillac 7266505 [Car Radio] ID = 235476 686x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cadillac 7266505, United Motors Service (Delco)

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1956 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 8: 12BA6 12BE6 12AU6 12BF6 12V6GT 12V6GT 12AU7 0Z4
Main principle Superheterodyne (common)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Cadillac 7266505 - United Motors Service Delco
Material Metal case
Shape Chassis only or for «building in»
Notes For 1956 Cadillac Automobiles.
Circuit diagram reference Photofact Folder, Howard W. SAMS

Model page created by Peter Hoddow. See "Data change" for further contributors.
