Delco R1151

Delco R1151; United Motors (ID = 781738) Radio

Delco R1151; United Motors (ID = 781739) Radio
Delco R1151; United Motors (ID = 376888) Radio Delco R1151; United Motors (ID = 376889) Radio
Delco R1151; United Motors (ID = 376890) Radio
Use red slider bar for more.
Delco R1151; United Motors (ID = 376888) Radio

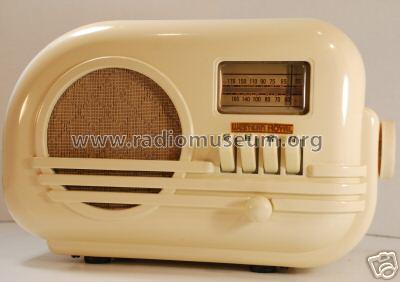

United Motors: Delco R1151 [Radio] ID = 376888 400x282
Select picture or schematic to display from thumbnails on the right and click for download.
For model Delco R1151, United Motors Service (Delco):
With courtesy by Greg Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12Q7GT 35L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Delco R1151 - United Motors Service Delco
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
