Delco R1153

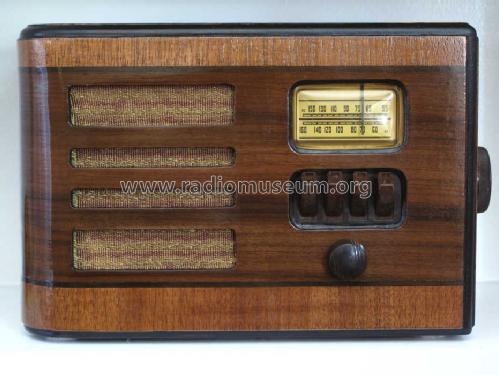

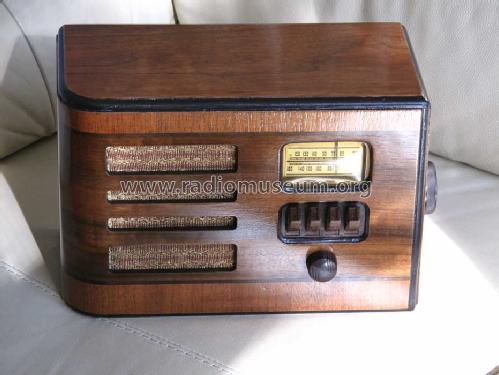

Delco R1153; United Motors (ID = 781821) Radio

Delco R1153; United Motors (ID = 781822) Radio
Delco R1153; United Motors (ID = 1515915) Radio Delco R1153; United Motors (ID = 1529296) Radio
Delco R1153; United Motors (ID = 1529297) Radio Delco R1153; United Motors (ID = 1529298) Radio
Delco R1153; United Motors (ID = 1529300) Radio Delco R1153; United Motors (ID = 1529301) Radio
Delco R1153; United Motors (ID = 1529302) Radio Delco R1153; United Motors (ID = 1529303) Radio
Delco R1153; United Motors (ID = 1697149) Radio
Use red slider bar for more.
Delco R1153; United Motors (ID = 1515915) Radio
United Motors: Delco R1153 [Radio] ID = 1515915 933x702
Select picture or schematic to display from thumbnails on the right and click for download.
For model Delco R1153, United Motors Service (Delco):
From an eBay ad.

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Delco R1153 - United Motors Service Delco
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12 x 8 x 6 inch / 305 x 203 x 152 mm
Notes

Has 4 push buttons for preset stations plus dial tuning.

External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
