Delco R1177

Delco R1177; United Motors (ID = 782101) Radio

Delco R1177; United Motors (ID = 782103) Radio
Delco R1177; United Motors (ID = 392674) Radio Delco R1177; United Motors (ID = 392675) Radio
Delco R1177; United Motors (ID = 392673) Radio Delco R1177; United Motors (ID = 392676) Radio
Delco R1177; United Motors (ID = 392677) Radio Delco R1177; United Motors (ID = 392678) Radio
Use red slider bar for more.
Delco R1177; United Motors (ID = 392674) Radio
United Motors: Delco R1177 [Radio] ID = 392674 759x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Delco R1177, United Motors Service (Delco):

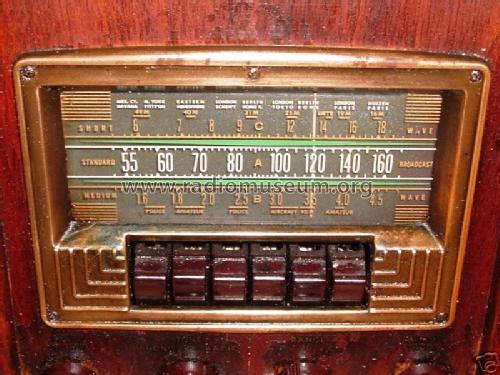

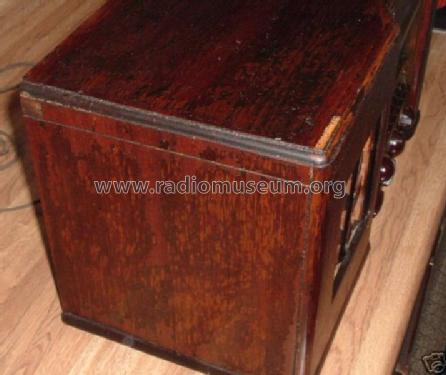

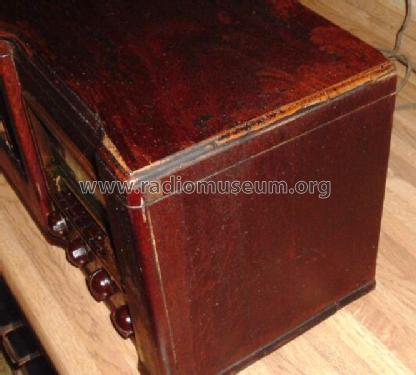

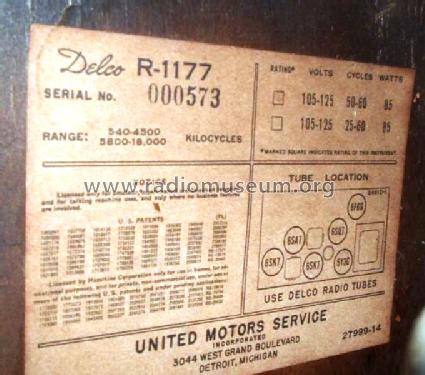

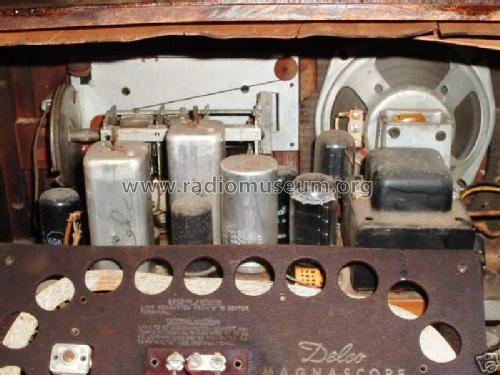

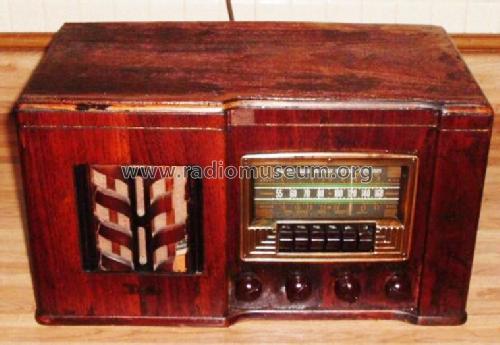

Picture courtesy of eBay seller birdman232

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SK7 6SA7 6SK7 6SQ7 6F6 5Y3G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Delco R1177 - United Motors Service Delco
Material Wooden case
Shape Tablemodel, with any shape - general.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
