Delco R1216

Delco R1216; United Motors (ID = 782387) Radio
Delco R1216; United Motors (ID = 782388) Radio
Delco R1216; United Motors (ID = 2132609) Radio Delco R1216; United Motors (ID = 2132610) Radio
Delco R1216; United Motors (ID = 2132612) Radio
Use red slider bar for more.
Delco R1216; United Motors (ID = 2132609) Radio

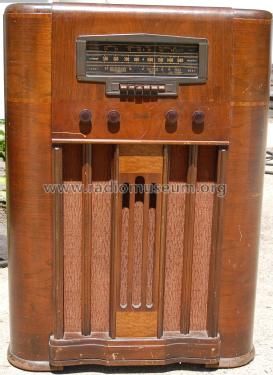

United Motors: Delco R1216 [Radio] ID = 2132609 800x1098
Select picture or schematic to display from thumbnails on the right and click for download.
For model Delco R1216, United Motors Service (Delco)
Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name
Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Chieftain || Delco
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6SG7 6SA7 6SK7 6SQ7 6SQ7 6SQ7 6K6GT 6K6GT 5Y3G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Model: Delco R1216 - United Motors Service Delco
Material Wooden case
Shape Console with Push Buttons.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
