Delco R-6012

Delco R-6012; United Motors (ID = 782846) Radio

Delco R-6012; United Motors (ID = 782847) Radio

Delco R-6012; United Motors (ID = 782848) Radio
Delco R-6012; United Motors (ID = 1520084) Radio Delco R-6012; United Motors (ID = 1520085) Radio
Delco R-6012; United Motors (ID = 706705) Radio
Use red slider bar for more.
Delco R-6012; United Motors (ID = 1520084) Radio

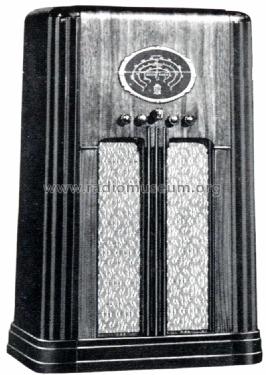

United Motors: Delco R-6012 [Radio] ID = 1520084 933x1315
Select picture or schematic to display from thumbnails on the right and click for download.
For model Delco R-6012, United Motors Service (Delco):
Scanned from the Delco Folder Form. A-621 for 1938.

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1936–1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 15 6A7 15 76 15 76 19
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / =6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Delco R-6012 - United Motors Service Delco
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 24 x 39.5 x 11.75 inch / 610 x 1003 x 298 mm
Notes

Farm Radio; sync.vibrator for +B; from 540 kc to 18 mc.

External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Pre-War Consoles
Literature/Schematics (3) Delco Folder Form. A-621 for 1938.


All listed radios etc. from United Motors Service (Delco)
Here you find 577 models, 312 with images and 548 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
