Delco R-6015

Delco R-6015; United Motors (ID = 782849) Radio

Delco R-6015; United Motors (ID = 782850) Radio
Delco R-6015; United Motors (ID = 1520086) Radio Delco R-6015; United Motors (ID = 1520087) Radio
Delco R-6015; United Motors (ID = 1649868) Radio Delco R-6015; United Motors (ID = 1649869) Radio
Delco R-6015; United Motors (ID = 1649870) Radio Delco R-6015; United Motors (ID = 1649871) Radio
Delco R-6015; United Motors (ID = 1649872) Radio Delco R-6015; United Motors (ID = 1649873) Radio
Delco R-6015; United Motors (ID = 1649874) Radio Delco R-6015; United Motors (ID = 1649875) Radio
Use red slider bar for more.

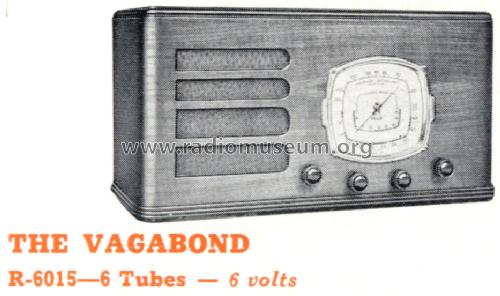

Delco R-6015; United Motors (ID = 1520086) Radio
United Motors: Delco R-6015 [Radio] ID = 1520086 933x553
Select picture or schematic to display from thumbnails on the right and click for download.
For model Delco R-6015, United Motors Service (Delco):
Scanned from the Delco Folder Form. A-621 for 1938.

Country:  United States of America (USA)
Manufacturer / Brand:  United Motors Service (Delco)
alternative name

Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
Brand
Chieftain || Delco
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6D8G 6S7G 6L5G 6S7G 6L5G 19
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / =6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Delco R-6015 - United Motors Service Delco
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 20 x 10 x 9 inch / 508 x 254 x 229 mm
Notes

6v Farm radio; vibrator for +B; from 540 kc to 18 mc.

External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Machine Age to Jet Age III
Literature/Schematics (3) Delco Folder Form. A-621 for 1938.
