R-1252 prod. run X / XX / XXX
United Motors Service (Delco)
- Country
- United States of America (USA)
- Manufacturer / Brand
- United Motors Service (Delco)
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 64494
-
- alternative name: Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors
- Brand: Chieftain || Delco
SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 inch = 38.1 cm
- Material
- Wooden case
- from Radiomuseum.org

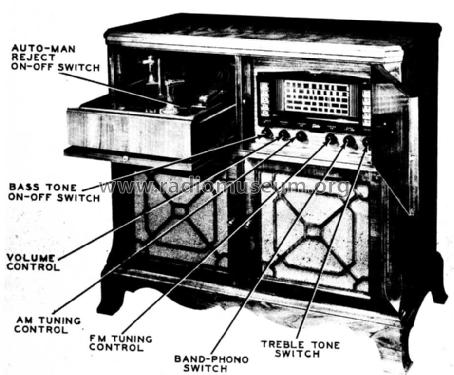

- Model: R-1252 [prod. run X / XX / XXX] - United Motors Service Delco
- Shape
- Console with Push Buttons.
- Notes
- 3 production runs: X, XX, XXX;
5 bands: BC, FM, 3xSW. In mahogany cabinet.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Mentioned in
- Radio Retailing (Radio & Television R.) (February 1947 page 33. May 1947 page 14.)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 21, Folder 4711-10)
