Delco R-1410
Use red slider bar for more.

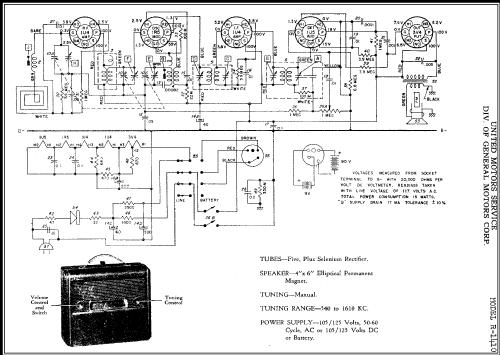

United Motors: Delco R-1410 [Radio] ID = 827731 911x722
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Delco Radio Corp. (Appliance) || Delco-Remy Division, General Motors Corp. || United Motors Service Delco General Motors | ||||
|---|---|---|---|---|---|
Brand |
Chieftain || Delco | ||||
| Year: 1948 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 1U4 1R5 1U4 1U5 3V4 |
| Main principle | Superhet with RF-stage; ZF/IF 262 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Line / Batteries (any type) / AC/DC 105-125 / 90 & 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Delco R-1410 - United Motors Service Delco |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 12.75 x 10.25 x 5.5 inch / 324 x 260 x 140 mm |
| Notes | 4" x 6" PM elliptical speaker. |
| Net weight (2.2 lb = 1 kg) | 9 lb (9 lb 0 oz) / 4.086 kg |
| External source of data | Ernst Erb |
| Source of data | Collector's Guide to Antique Radios 4. Edition |
| Circuit diagram reference | Rider's Perpetual, Volume 19 = 1949 and before |
