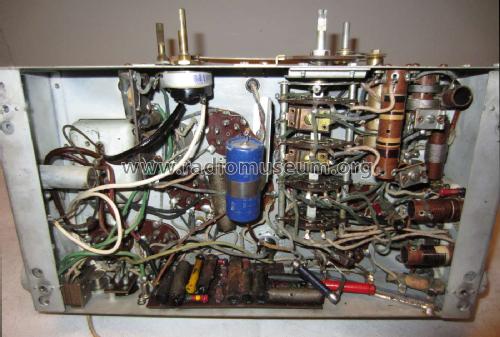

For model 465 Meterskala, United American Bosch (Magneto Corporation); Springfield (MA)

Country:  United States of America (USA)
Manufacturer / Brand:  United American Bosch (Magneto Corporation); Springfield (MA)
alternative name

American Bosch Magneto
Brand
Essex
Year: 1935–1937 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 56 58 58 58 2A6 2A5 80
Main principle ZF/IF 456 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 90; 100; 110;120;130; 150;200;210;220;230;250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 465 Meterskala - United American Bosch Magneto
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.

Model page created by Manfred Rathgeb. See "Data change" for further contributors.
