Udisco Super Neut L5

Udisco Super Neut L5; United Distributors (ID = 990341) Radio
Use red slider bar for more.
Udisco Super Neut L5; United Distributors (ID = 990341) Radio
United Distributors: Udisco Super Neut L5 [Radio] ID = 990341 933x367
Select picture or schematic to display from thumbnails on the right and click for download.
For model Udisco Super Neut L5, United Distributors Ltd.(Udisco);Sydney:

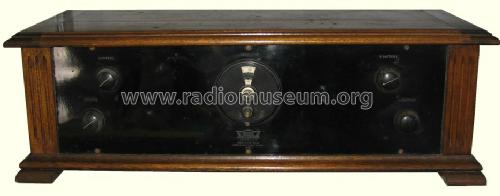

Udisco model L5. Photo taken with permission from owner.

Country:  Australia
Manufacturer / Brand:  United Distributors Ltd.(Udisco);Sydney
Year: 1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: A609_UX A609_UX A609_UX A609_UX A609_UX
Main principle TRF without regeneration; 2 AF stage(s); Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Udisco Super Neut L5 - United Distributors Ltd.Udisco
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes Single dial tuning. The price below includes valves but not speaker or batteries.
Price in first year of sale 30.00 Aus£

Model page created by Stuart Irwin. See "Data change" for further contributors.



All listed radios etc. from United Distributors Ltd.(Udisco);Sydney
Here you find 22 models, 17 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
