• Year
  • 1906–1912
  • Category
  • Morse-Equipment & TTY, RTTY, TDD etc.
  • Radiomuseum.org ID
  • 279210

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Spark Transmitter Leyden Jar - United Wireless Telegraph Co.;
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 5 x 16 x 5 inch / 127 x 406 x 127 mm
  • Notes

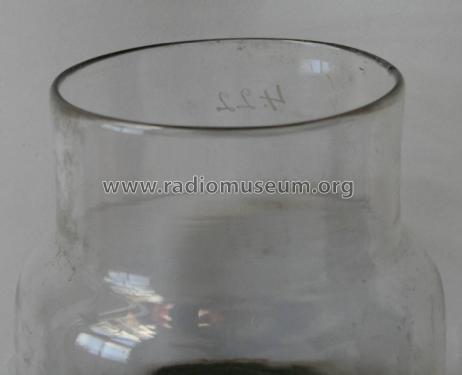

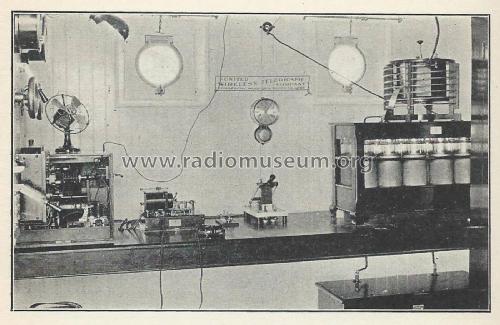

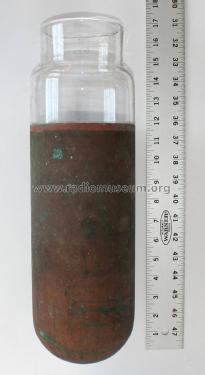

  • This is a United Wireless Telegraph (UWT) Co. (1906-1912) Leyden Jar condenser for use in a spark transmitter used in wireless telegraphy. Normally, 10 to 12 Leyden Jars of this type were connected in a wooden rack to make up the high voltage condenser in the spark transmitter.

    See also the 18 Jar Leyden Rack.

  • Author
  • Model page created by Richard Groshong. See "Data change" for further contributors.
