Queen 2 Transistor Boy's Radio MTR-203

Queen 2 Transistor Boy's Radio MTR-203; Unknown - CUSTOM (ID = 800513) Radio Queen 2 Transistor Boy's Radio MTR-203; Unknown - CUSTOM (ID = 800514) Radio

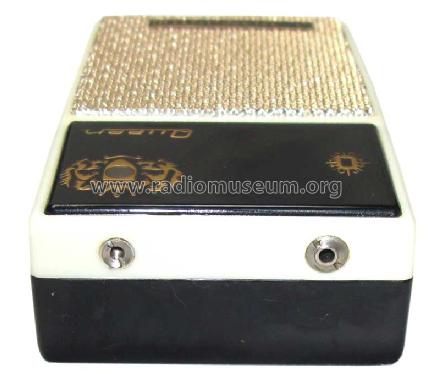

Queen 2 Transistor Boy's Radio MTR-203; Unknown - CUSTOM (ID = 800515) Radio Queen 2 Transistor Boy's Radio MTR-203; Unknown - CUSTOM (ID = 800516) Radio

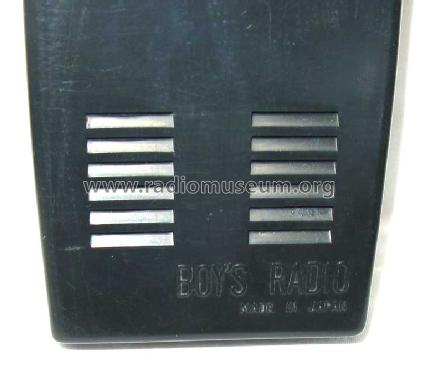

Queen 2 Transistor Boy's Radio MTR-203; Unknown - CUSTOM (ID = 800517) Radio Queen 2 Transistor Boy's Radio MTR-203; Unknown - CUSTOM (ID = 847657) Radio
Queen 2 Transistor Boy's Radio MTR-203; Unknown - CUSTOM (ID = 2226622) Radio Queen 2 Transistor Boy's Radio MTR-203; Unknown - CUSTOM (ID = 2224651) Radio
Queen 2 Transistor Boy's Radio MTR-203; Unknown - CUSTOM (ID = 2224652) Radio Queen 2 Transistor Boy's Radio MTR-203; Unknown - CUSTOM (ID = 2224653) Radio
Use red slider bar for more.
Queen 2 Transistor Boy's Radio MTR-203; Unknown - CUSTOM (ID = 800513) Radio
Unknown - CUSTOM: Queen 2 Transistor Boy's Radio MTR-203 [Radio] ID = 800513 543x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model Queen 2 Transistor Boy's Radio MTR-203, Unknown - CUSTOM BUILT: Japan:
Ebay 120597755502

Country:  Japan
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Japan
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2:
Main principle TRF with diode detector; Reflex
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Queen 2 Transistor Boy's Radio MTR-203 - Unknown - CUSTOM BUILT: Japan
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 63 x 107 x 30 mm / 2.5 x 4.2 x 1.2 inch
Notes

Similar to King (1) and Royal Tone.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Literature/Schematics (1) Transistor Radios 1954-68 (p.77)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
