AA-50; Unknown - CUSTOM (ID = 1764664) Radio
Unknown - CUSTOM: AA-50 [Radio] ID = 1764664 933x375

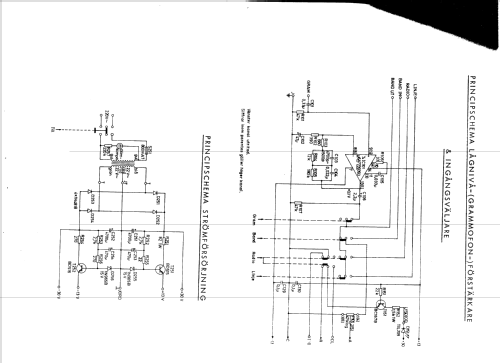

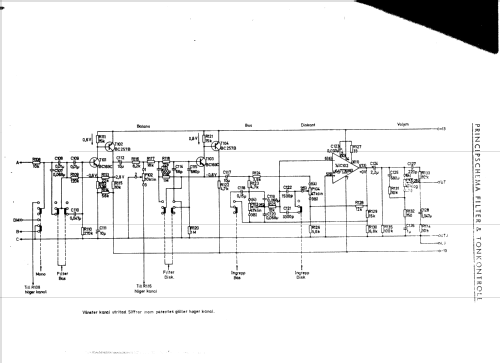

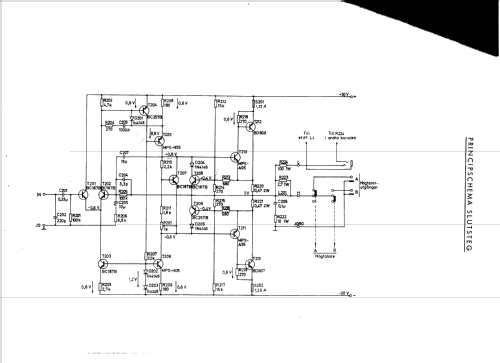

Select picture or schematic to display from thumbnails on the right and click for download.
For model AA-50, Unknown - CUSTOM BUILT: Sweden

Country:  Sweden
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Sweden
Year: 1972 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 50 W (undistorted)
from Radiomuseum.org Model: AA-50 - Unknown - CUSTOM BUILT: Sweden
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 408 x 78 x 260 mm / 16.1 x 3.1 x 10.2 inch
Notes

AA-50 Amplifier Do It Yourself Kit with optional FM receiver and FM stereo decoder kits from Larsholt, Denmark. AA-50 was designed and sold as a kit by Göran Olsson at the Royal Institute of Technology, Stockholm, Sweden.

Price including FM stereo kit.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 1'010.00 SEK
Mentioned in - - Manufacturers Literature

Model page created by Kent Johansson. See "Data change" for further contributors.



All listed radios etc. from Unknown - CUSTOM BUILT: Sweden
Here you find 7 models, 4 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
