• Year
  • 1960 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 199524

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
  • Power out
  • 2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

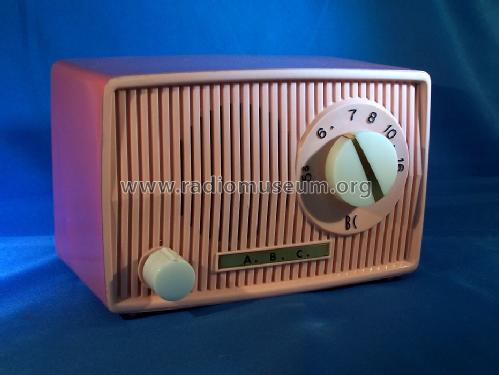

  • Model: A.B.C. - Unknown - CUSTOM BUILT: Japan
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 7 x 4.5 x 4 inch / 178 x 114 x 102 mm
  • Notes
  • Made for the US market (CD marks at 640 and 1240 kHz).
  • Author
  • Model page created by Flavio Chavez. See "Data change" for further contributors.
