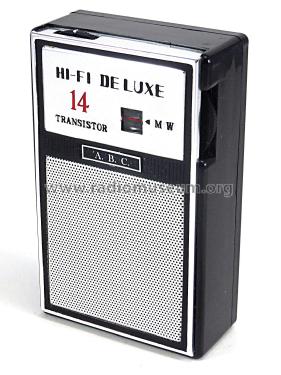

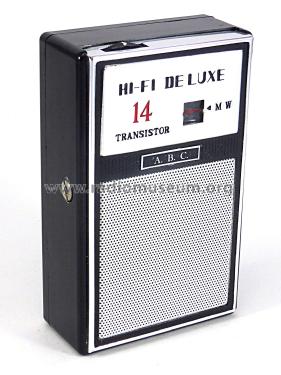

A.B.C. Hi-Fi Deluxe 14 Transistor HT-1246
Unknown - CUSTOM BUILT: Japan
- Country
- Japan
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Japan
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 305424
- Number of Transistors
- 14
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: A.B.C. Hi-Fi Deluxe 14 Transistor HT-1246 - Unknown - CUSTOM BUILT: Japan
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 63 x 107 x 32 mm / 2.5 x 4.2 x 1.3 inch
- Notes
-

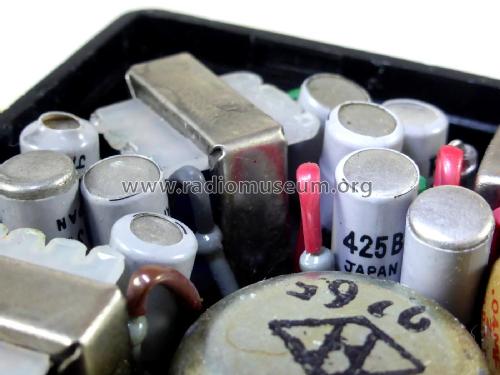

Made in Japan. US Civil Defense marks on station dial. Similar PCB configuration to Imperial HT-1225, inlcuding a plastic sheath on each transistor.
- Author
- Model page created by Ray Albright. See "Data change" for further contributors.
