• Country
• Japan

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Japan

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 235921

• Number of Transistors
• 3

• Semiconductors

• Main principle
• Superheterodyne (common); 1 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

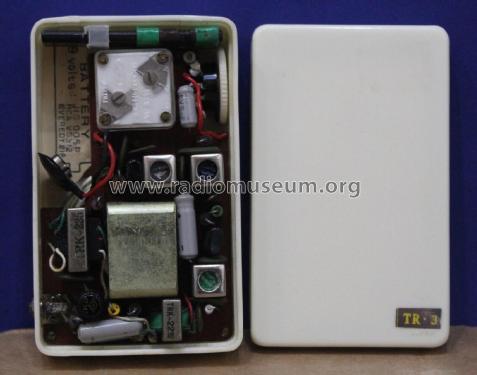

• Model: All Transistor 707 TR-3 - Unknown - CUSTOM BUILT: Japan

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.625 x 4.125 x 1.25 inch / 67 x 105 x 32 mm

• Notes

• Pocket AM Radio Model 707 All Transistor TR-3.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
