• Country
• Hong Kong

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Hong Kong (HK)

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 235223

• Number of Transistors
• 5

• Semiconductors
• S9018 S9018 1402E S9013 S9013

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

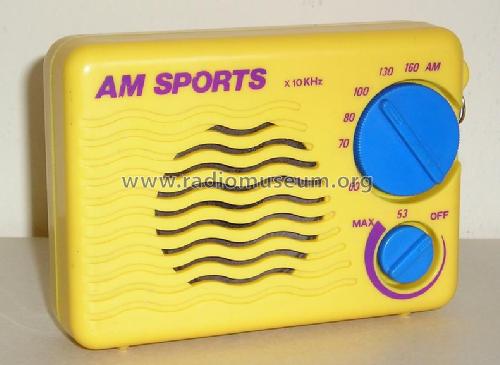

• Model: AM Sports - Unknown - CUSTOM BUILT: Hong

• Dimensions (WHD)
• 110 x 75 x 33 mm / 4.3 x 3 x 1.3 inch

• Notes

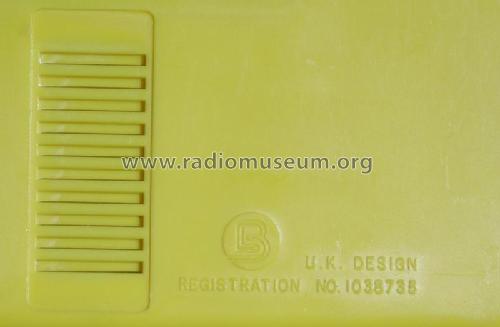

• British Design Reg. Nº. 1038735.

  Model was produced by various HKG makers.

• Net weight (2.2 lb = 1 kg)
• 0.190 kg / 0 lb 6.7 oz (0.419 lb)

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
