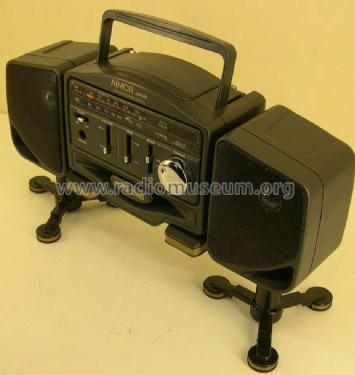

Mini Component System N-388

Aimor Electric Works, Ltd.; Tokyo

  • Year
  • 1984 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 167052

 Technical Specifications

  • Number of Transistors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Mini Component System N-388 - Aimor Electric Works, Ltd.;
  • Shape
  • Design Radio or Novelty / Gadget - fancy or unusual shape.
  • Dimensions (WHD)
  • 185 x 148 x 98 mm / 7.3 x 5.8 x 3.9 inch
  • Notes
  • Mini-Component System (Mono) mit 2 abnehmbaren Lautsprecherboxen. Gesamtbreite mit LS = 378 mm. Frequenzbereich: AM 535-1605 kHz, FM 88-108 MHz, LED-Power Anzeige, Kopfhöreranschluss (Klinke 3,5 mm), LIN-IC: CXA1191S (HF+NF), 5 tlg. Teleskopantenne 45 cm. Ferritantenne 5,5 cm
  • Net weight (2.2 lb = 1 kg)
  • 1.3 kg / 2 lb 13.8 oz (2.863 lb)
