Aniton 6-Transistor

Unknown - CUSTOM BUILT: Japan

  • Year
  • 1960 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 234483

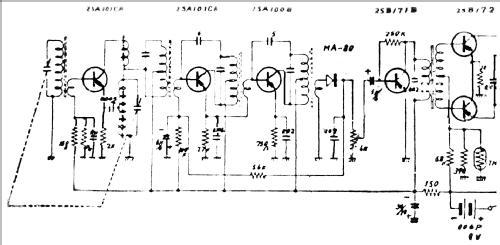

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 0.5 cm = 0.2 inch
  • Power out
  • 0.1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Aniton 6-Transistor - Unknown - CUSTOM BUILT: Japan
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 115 x 70 x 33 mm / 4.5 x 2.8 x 1.3 inch
  • Notes
  • In der Rückwand ist ein durch eine Klappe verschlossenes Behältnis für einen Ohrhörer.

  • Author
  • Model page created by Joachim Gittel †. See "Data change" for further contributors.
