Answer Three Purposes Radio Phono & Tape Recorder ATR-102

Unknown - CUSTOM BUILT: Japan

  • Year
  • 1962 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 214039

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Dry Batteries / 3 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
  • Power out
  • 0.15 W (unknown quality)
  • Material

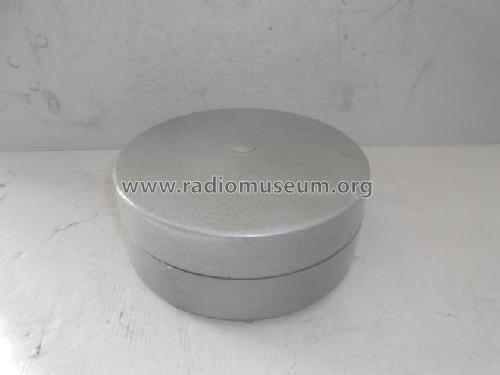

  • Metal case
  • from Radiomuseum.org
  • Model: Answer Three Purposes Radio Phono & Tape Recorder ATR-102 - Unknown - CUSTOM BUILT: Japan
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 220 x 80 x 0 mm / 8.7 x 3.1 x 0 inch
  • Notes

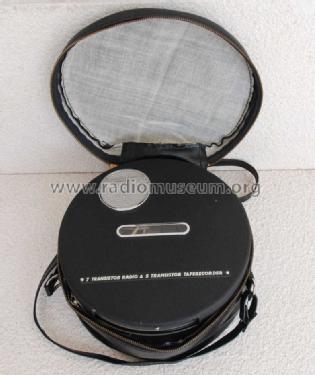

  • Answer Three Purposes Radio, Phonograph & Tape Recorder "Triplecorder" ATR-102;

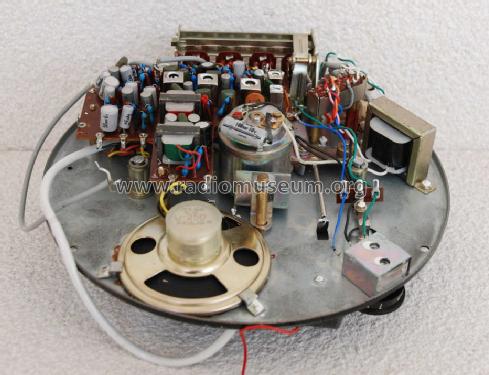

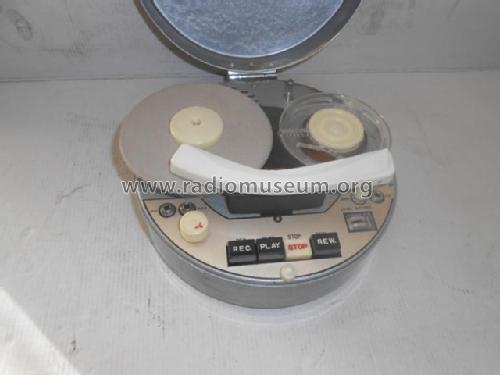

    Combines a 7 transistor AM radio, push-button open reel tape recorder and 45 rpm disc record player with add. AUX transistors. VU meter, telescopic antenna. Sold in set with mic. and accessories. Made in Japan by Answer (unproven: Answer Electronics; Tokyo). Two diodes MA80. Design Patent no 235859.
  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
