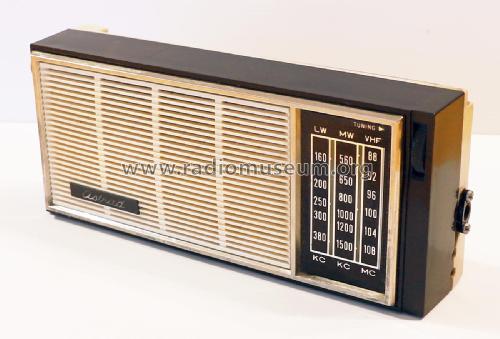

Astrad F3TR9-R302
Use red slider bar for more.
Radiotehnika RT -: Astrad F3TR9-R302 [Radio] ID = 1397022 933x994
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works | ||||
|---|---|---|---|---|---|
| Year: 1970–1974 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 9: ГТ322 ГТ322 ГТ322 ГТ322 ГТ322 ГТ108 ГТ108 МП41 МП41 |
| Main principle | Superheterodyne (common); ZF/IF 465/10700 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) 9 FM circuit(s) |
| Wave bands | Broadcast, Long Wave and FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 6 × 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.4 cm = 2.5 inch |
| Power out | 0.25 W (unknown quality) |
| from Radiomuseum.org | Model: Astrad F3TR9-R302 - Radiotehnika RT - after 1951 |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 220 x 100 x 48 mm / 8.7 x 3.9 x 1.9 inch |
| Notes | RRR Astrad F3TR9-R302; VHF(FM): CCIR band up to 108 MHz, Transistors (Russian): 5x GT322A, 2x GT108B, 2x MP41. Sockets for earphone, aerial and earth. Also known as the Vega 302. See also model Riga 302. |
| Net weight (2.2 lb = 1 kg) | 0.8 kg / 1 lb 12.2 oz (1.762 lb) |
| Mentioned in | -- Original prospect or advert |
Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
All listed radios etc. from Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
Here you find 98 models, 96 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
Forum contributions about this model
Radiotehnika RT -: Astrad F3TR9-R302
Threads: 1 | Posts: 1
|
Hits: 1542 Replies: 0
radiotehni: F3TR9-R302 (F 3 TR 9-R 302); Astrad
|
|
|
Peter Gleichmann
10.Jul.09 |
1

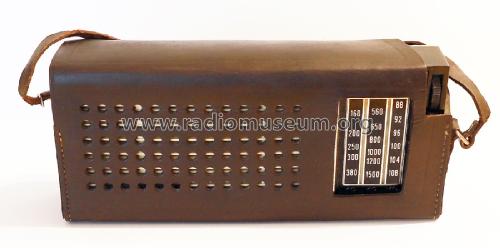

Ein gleiches Fabrikat, nur mit Modellbezeichnung Riga, wurde in den anderen Ostblockländern ausserhalb der DDR ,mit verändertem Empfangsbereich VHF 65.8 - 73 Mhz ausgeliefert.Alle anderen Features , wie Lederhülle und sonstige Ausstattung waren identisch. |
