Bevox 315L

Bevox 315L; Unknown - CUSTOM (ID = 1292287) Radio Bevox 315L; Unknown - CUSTOM (ID = 1295260) Radio

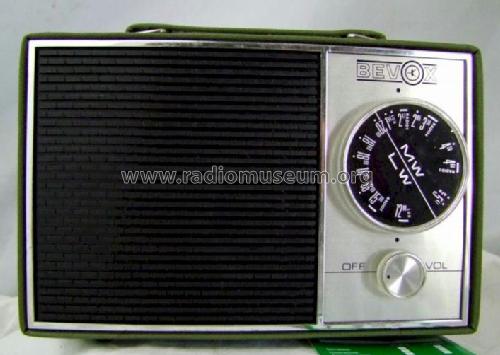

Bevox 315L; Unknown - CUSTOM (ID = 1295261) Radio Bevox 315L; Unknown - CUSTOM (ID = 1295262) Radio
Bevox 315L; Unknown - CUSTOM (ID = 1295263) Radio Bevox 315L; Unknown - CUSTOM (ID = 1298763) Radio
Bevox 315L; Unknown - CUSTOM (ID = 1298765) Radio
Use red slider bar for more.
Bevox 315L; Unknown - CUSTOM (ID = 1292287) Radio
Unknown - CUSTOM: Bevox 315L [Radio] ID = 1292287 448x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bevox 315L, Unknown - CUSTOM BUILT: Singapore (SGP):
johannamauer 120968067408

Country:  Singapore
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Singapore (SGP)
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.16 W (undistorted)
from Radiomuseum.org Model: Bevox 315L - Unknown - CUSTOM BUILT:
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 170 x 110 x 50 mm / 6.7 x 4.3 x 2 inch
Notes Bevox 315L;
Made in Singapore most probably for the french market.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)

Model page created by a member from A. See "Data change" for further contributors.
