Brook 3B Preamplifier

Brook 3B Preamplifier ; Unknown - CUSTOM (ID = 2624263) Ampl/Mixer
Use red slider bar for more.
Brook 3B Preamplifier ; Unknown - CUSTOM (ID = 2624263) Ampl/Mixer
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: USA
Year: 1950 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 4: 6SJ7 6SJ7 6SJ7 6SJ7
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Brook 3B Preamplifier - Unknown - CUSTOM BUILT: USA
Material Metal case
Shape Chassis only or for «building in»
Notes

2 Low gain inputs,

2 Magnetic inputs,

1 MIC input.

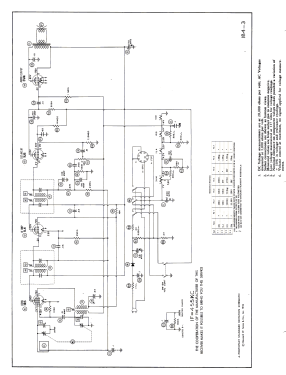

Mentioned in -- Schematic

Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
