120-920 Code 15.30001
Catalina (White Stores, Inc.); Wichita Falls, TX
- Country
- United States of America (USA)
- Manufacturer / Brand
- Catalina (White Stores, Inc.); Wichita Falls, TX
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 277108
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 60 Hz, 105 - 120 / C: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 120-920 Code 15.30001 - Catalina White Stores, Inc.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 200 x 150 x 80 mm / 7.9 x 5.9 x 3.1 inch
- Notes
-

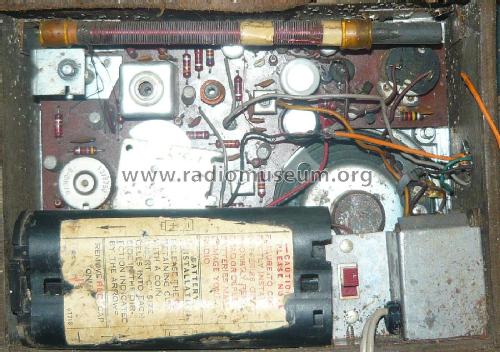

Catalina 120-920 is a transistor line/battery operated portable receiver.
Stock no. 120-920 (walnut)
- Net weight (2.2 lb = 1 kg)
- 1.4 kg / 3 lb 1.3 oz (3.084 lb)
- Author
- Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
- Other Models
-
Here you find 3 models, 3 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
