CGM (?) Equalizer Amplifier

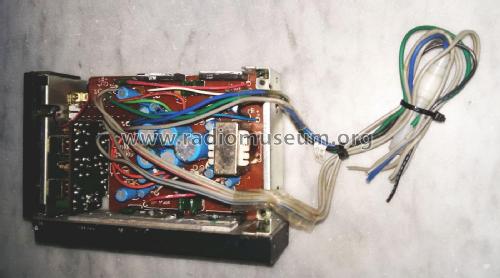

CGM Equalizer Amplifier ; Unknown Worldwide (ID = 2562161) Ampl/Mixer CGM Equalizer Amplifier ; Unknown Worldwide (ID = 2560153) Ampl/Mixer
CGM Equalizer Amplifier ; Unknown Worldwide (ID = 2560152) Ampl/Mixer CGM Equalizer Amplifier ; Unknown Worldwide (ID = 2560151) Ampl/Mixer
CGM Equalizer Amplifier ; Unknown Worldwide (ID = 2560154) Ampl/Mixer CGM Equalizer Amplifier ; Unknown Worldwide (ID = 2560155) Ampl/Mixer
Use red slider bar for more.
CGM Equalizer Amplifier ; Unknown Worldwide (ID = 2562161) Ampl/Mixer
Unknown Worldwide: CGM Equalizer Amplifier [Ampl/Mixer] ID = 2562161 1400x1320
Select picture or schematic to display from thumbnails on the right and click for download.
For model CGM (?) Equalizer Amplifier, Unknown Worldwide

Country:  Worldwide
Manufacturer / Brand:  Unknown Worldwide
Year: 1980 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present. TA7205 TA7205 TA7205 TA7205
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: CGM Equalizer Amplifier - Unknown Worldwide
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 115 x 40 x 160 mm / 4.5 x 1.6 x 6.3 inch
Notes

Stereo power amplifier with bass and treble controls ±12 dB. Power output max 18 W on 2÷4 Ω per channel (2xTA 7205 in push-pull).
Input, taken from the output of a low power amplifier, can be deviated, by the ignition switch in the "off" position, directly to the loudspeakers, bypassing the "Equalizer Amplifier".

The brand cannot be identified: CCGM, QCGM , CCCM, CGM, CCM?

Net weight (2.2 lb = 1 kg) 0.750 kg / 1 lb 10.4 oz (1.652 lb)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
