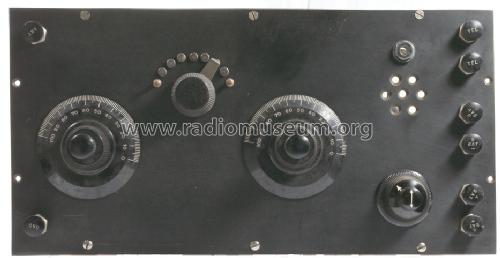

Cockaday Four Circuit Tuner

Cockaday Four Circuit Tuner ; Unknown - CUSTOM (ID = 1609984) Kit Cockaday Four Circuit Tuner ; Unknown - CUSTOM (ID = 1609983) Kit
Cockaday Four Circuit Tuner ; Unknown - CUSTOM (ID = 1613909) Kit Cockaday Four Circuit Tuner ; Unknown - CUSTOM (ID = 1613910) Kit
Cockaday Four Circuit Tuner ; Unknown - CUSTOM (ID = 1613911) Kit Cockaday Four Circuit Tuner ; Unknown - CUSTOM (ID = 1613912) Kit
Cockaday Four Circuit Tuner ; Unknown - CUSTOM (ID = 1613913) Kit Cockaday Four Circuit Tuner ; Unknown - CUSTOM (ID = 1613914) Kit
Cockaday Four Circuit Tuner ; Unknown - CUSTOM (ID = 1613915) Kit Cockaday Four Circuit Tuner ; Unknown - CUSTOM (ID = 1613916) Kit
Use red slider bar for more.
Cockaday Four Circuit Tuner ; Unknown - CUSTOM (ID = 1609984) Kit
Unknown - CUSTOM: Cockaday Four Circuit Tuner [Kit] ID = 1609984 932x737
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cockaday Four Circuit Tuner, Unknown - CUSTOM BUILT: USA:
Auktion No. 231145281735 ebay, early-radio

Country:  United States of America (USA)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: USA
Year: 1924 ? Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 1: UV200
Main principle TRF with regeneration; Special type of reception - please describe.
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Cockaday Four Circuit Tuner - Unknown - CUSTOM BUILT: USA
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 370 x 205 x 230 mm / 14.6 x 8.1 x 9.1 inch
Notes

Cockaday Four-Circuit Tuner.

Tuning condensers made by "Advance Electric Co.". Most probably a kit of unknown shop.



Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)

Model page created by Jörg Sigg. See "Data change" for further contributors.
