Combicontrol II (2) 733 CC

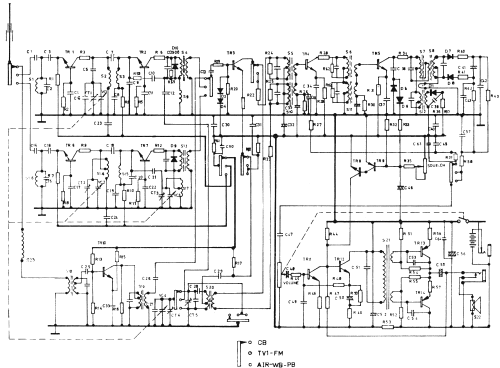

Combicontrol II 733 CC; Unknown - CUSTOM (ID = 794414) Radio

Combicontrol II 733 CC; Unknown - CUSTOM (ID = 794415) Radio
Combicontrol II 733 CC; Unknown - CUSTOM (ID = 485808) Radio
Use red slider bar for more.
Combicontrol II 733 CC; Unknown - CUSTOM (ID = 485808) Radio
Unknown - CUSTOM: Combicontrol II 733 CC [Radio] ID = 485808 331x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Combicontrol II (2) 733 CC, Unknown - CUSTOM BUILT: Japan:
Funkschau Heft 24 November 1981 Seite 150 Werbeschaltung

Country:  Japan
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Japan
Year: 1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Other, details in remarks or not known. / 6; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Combicontrol II 733 CC - Unknown - CUSTOM BUILT: Japan
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 95 x 200 x 50 mm / 3.7 x 7.9 x 2 inch
Notes Combicontrol II, 733 CC;
5 Band Empfänger:
40 Kanäle CB 26.9 - 27.4 MHz,
TV1: 54 - 88 MHz,
FM: 88 - 108 MHz,
AIR: 108 - 140 MHz,
PB/2m: 140 - 176 MHz.
8 Dioden, 13 Bandfilter, 570 g.
Vertrieb in Deutschland u.a. über Rubach-Electronic-GmbH, Hamburg.
Price in first year of sale 94.00 DM
Mentioned in Funkschau (Heft 24 November 1981 Seite 150 Werbeschaltung)
