Compact Radio UKW

Compact Radio UKW ; Unknown Worldwide (ID = 1455053) Radio Compact Radio UKW ; Unknown Worldwide (ID = 1455054) Radio
Compact Radio UKW ; Unknown Worldwide (ID = 1455055) Radio Compact Radio UKW ; Unknown Worldwide (ID = 1455057) Radio
Use red slider bar for more.

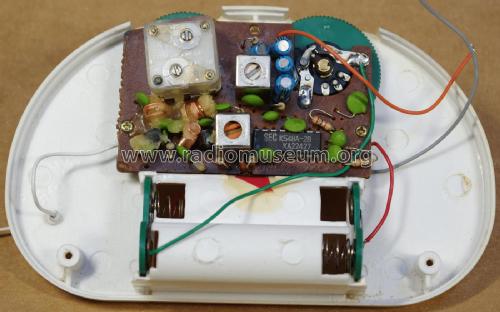

Compact Radio UKW ; Unknown Worldwide (ID = 1455053) Radio
Unknown Worldwide: Compact Radio UKW [Radio] ID = 1455053 900x660
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Radio UKW, Unknown Worldwide:
Sammlung

Country:  Worldwide
Manufacturer / Brand:  Unknown Worldwide
Year: 2005 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2:
Main principle Super-Heterodyne (Super in general); ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Storage and/or dry batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out
from Radiomuseum.org Model: Compact Radio UKW - Unknown Worldwide
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 150 x 120 x 60 mm / 5.9 x 4.7 x 2.4 inch
Notes

  Werberadio (Yves Rocher ), Wurfantenne, 88 bis 108 MHz, Farbe Weis, IC S540A

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
