Cosmel 600

Cosmel 600; Unknown Worldwide (ID = 730621) Radio Cosmel 600; Unknown Worldwide (ID = 730616) Radio

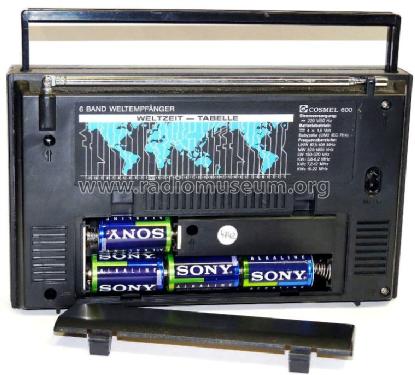

Cosmel 600; Unknown Worldwide (ID = 730617) Radio Cosmel 600; Unknown Worldwide (ID = 730618) Radio
Cosmel 600; Unknown Worldwide (ID = 730620) Radio
Use red slider bar for more.
Cosmel 600; Unknown Worldwide (ID = 730621) Radio
Unknown Worldwide: Cosmel 600 [Radio] ID = 730621 812x638
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cosmel 600, Unknown Worldwide

Country:  Worldwide
Manufacturer / Brand:  Unknown Worldwide
Year: 1984 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: unknown_tr TDA1220 TBA820
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Cosmel 600 - Unknown Worldwide
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 155 x 55 mm / 10.2 x 6.1 x 2.2 inch
Notes 6-Band Weltempfänger Cosmel 600.
Frequenzbereiche: UKW 87,5..108 MHz, MW 525..1605 kHz, LW 150..320 kHz, KW1 5,8..6,2 MHz, KW2 7,2..12 MHz, KW3 15..22 MHz. Tonschalter. 5 tlg. Teleskopantenne (85 cm). Ferritantenne (9 cm). 2 x LIN-IC: TDA1220B und TBA 820M. Wahrscheinlich fernöstliche Herstellung für den deutschsprachigen Raum.
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
