Cosy FM Receiver F-902

Cosy FM Receiver F-902; Unknown Worldwide (ID = 1933230) Radio Cosy FM Receiver F-902; Unknown Worldwide (ID = 1933231) Radio
Cosy FM Receiver F-902; Unknown Worldwide (ID = 1933232) Radio Cosy FM Receiver F-902; Unknown Worldwide (ID = 1933233) Radio
Use red slider bar for more.
Cosy FM Receiver F-902; Unknown Worldwide (ID = 1933230) Radio
Unknown Worldwide: Cosy FM Receiver F-902 [Radio] ID = 1933230 1400x1742
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cosy FM Receiver F-902, Unknown Worldwide

Country:  Worldwide
Manufacturer / Brand:  Unknown Worldwide
Year: 1995 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) KA22429
Main principle Super-Heterodyne (Super in general); ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details

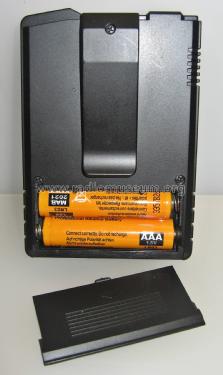

Power type and voltage Dry Batteries / LR03: 2x 1,5 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Cosy FM Receiver F-902 - Unknown Worldwide
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 57 x 78 x 21 mm / 2.2 x 3.1 x 0.8 inch
Notes

Taschenradio für UKW-Empfang; Anschluss für Ohr- oder Kopfhörer über 3.5 mm Klinkenbuchse, Hörerleitung dient als Antenne.

Net weight (2.2 lb = 1 kg) 0.034 kg / 0 lb 1.2 oz (0.075 lb)

Model page created by Michael Mischke. See "Data change" for further contributors.
