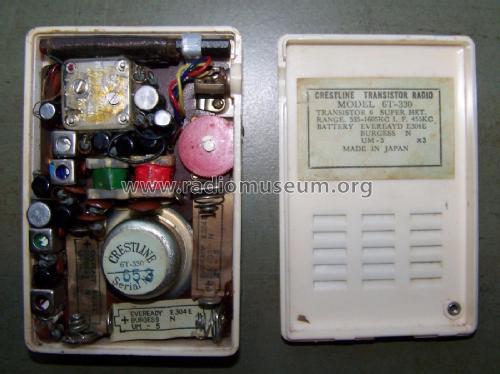

Crestline 6 Transistor 6T-330

Crestline (Canton-Son, Inc.); New York, NY

Data
Forum
Pictures
Collections

  • Year
  • 1960 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 293984

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 3 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Crestline 6 Transistor 6T-330 - Crestline Canton-Son, Inc.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 3.625 x 2.375 x 1.25 inch / 92 x 60 x 32 mm
  • Notes

  • 6 Transistor AM-Pocket Radio Model Crestline 6T-330.
    Tuning Range 535 - 1605 kHz
    Earphone Jack
    Leathercase

    Very similar to the models listed under Hi-Delity


  • Mentioned in
  • -- Collector info (Sammler)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
